Notes based on ibCom's use of AWS to host
mydigitalstructure is a fully hosted webapi and platform - a "backend as a service" - it allows developers to use a common model and set of methods to rapidly build modern enterprise apps.

Functionality ranges from hosting a public website through to full accounting.

There are 25 core objects (ie contacts, projects, invoices etc) with 700+ methods (ie add contact, search for contact).

mydigitalstructure is a fully hosted multi-tenanted environment that services 1000s of enterprise spaces - with demand changing from one moment to the next.

  • Highly dynamic infrastructure that can react quickly to demand both on the up and the down.

  • Self-managing - allowing the ibCom model and code to run within a set of infrastructure rules that requires minimal human interaction.

  • Supply costs that are economically aligned with a competitive marketplace.
  • Work with common well-proven standards (protocols) above and below the mydigitalstructure layer.

  • IAM, Identity Access Management, with Multi Factor Authentication (MFA)
  • ELB, Elastic Load Balancers x 6
  • Route53, DNS Management
  • EIP, Elastic IP x 1
  • EC2, Elastic Compute Service x 2+
  • EBS, Elastic Block Store (Volume) with EC2
  • RDS, Relational Database Service
  • VPC, Virtual Private Cloud
  • SES, Simple Email Service
  • CLI, Command Line Interface
  • Phase 1 +
  • DynamoDB, Non-relational database service
  • S3, Simple Storage Service

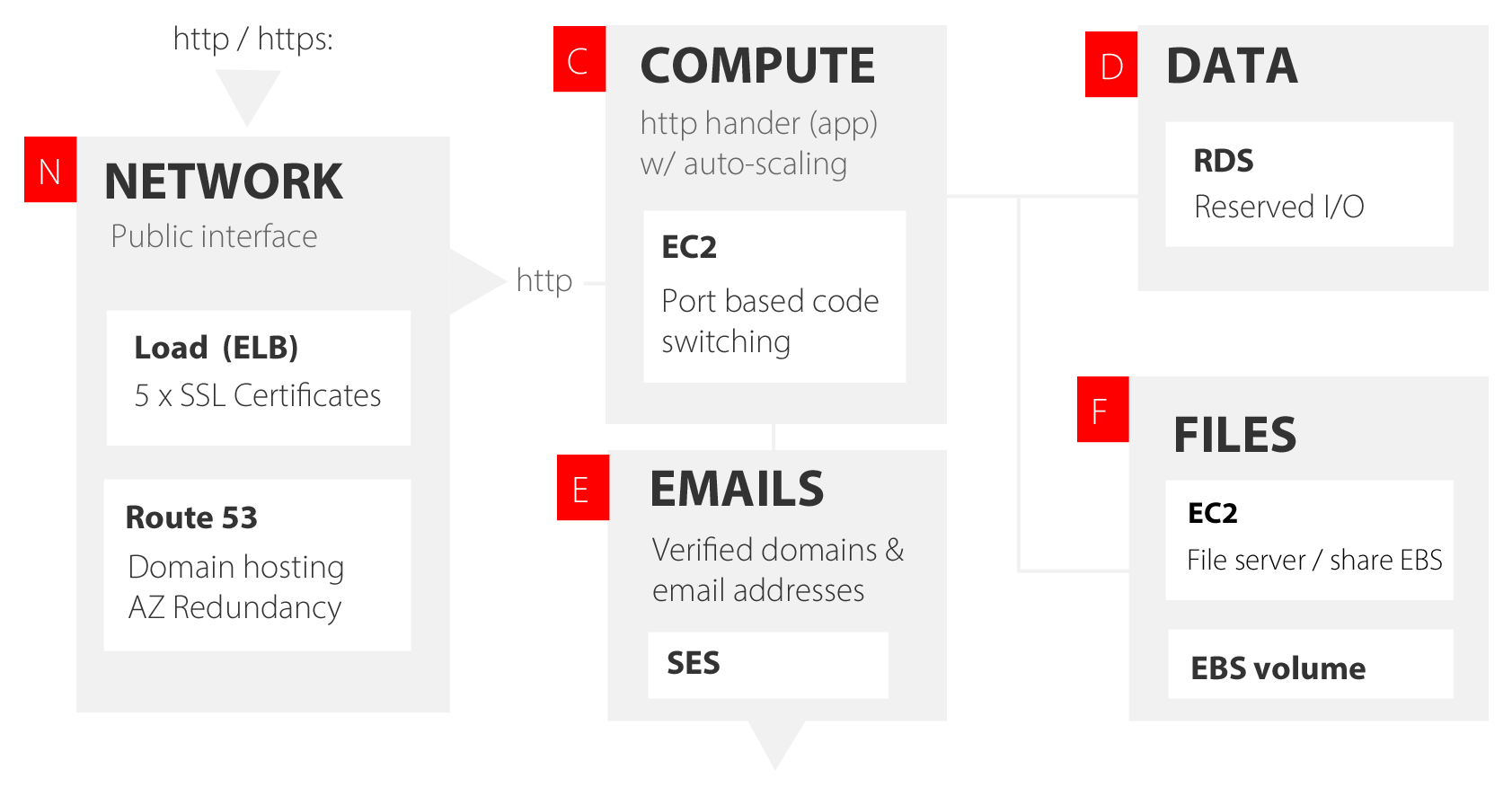

Security Groups For managing port access - https access onto load balancers and then http to the EC2 app services within the VPC.

Control access to services and access via command line interface, using sourceIP restrictions as a condition of the access policy.
VPC Virtual private cloud (network) - for isolated communication between services.
ELB Five load balancers to handle the core platform SSL/https access points:
  • webapi:
  • platform:
  • + 2 to handle "classic" platforms
  • + 1 to handle a retail service

ELB IP addresses are referenced via DNS names - allowing for arraying of the ELB appliances.

Route53 DNS for CNAME entries for friendly names - including alias entries for root domains.
EIP One elastic IP address for administrative access.  Not 100% required - may be eliminated in phase 2.
EC2 Servicing the http based app (where the code lives) and also for sharing the primary EBS volume.
EBS For file storage; as attachments to objects.  Current app needs synchronise access to files - next phase will introduce the "in-lab" S3 based file storage.
RDS For model data storage.
SES For sending emails - each space (tenant) has its own domain verified for sending emails.  Services adhoc emails and also eNews campaigns.  Uses SMTP.  Phase 2 will convert to webservice - so app lives with-in the http protocol.
CLI More a tool than a service - but important for scripting commands.  Important use of sourceIP condition in policy.
